Wall socket 16 A | 36–50 V AC | 2P

Description

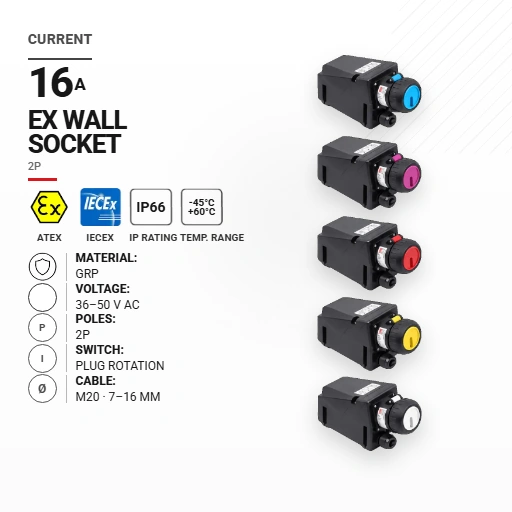

HARDO HSP1P explosion-proof wall socket for Ex zones 1, 2, 21 and 22. GRP housing, IP66. Mechanical interlock prevents withdrawal under load.

• Rated current: 16 A
• Rated voltage: 36–50 V AC (White)
• Poles: 2P
• PE pin position: n/a
• Switch: Plug rotation
• Cable: M20 · 7–16 MM
• Auxiliary contact NO: None
• ATEX: II 2 G D Ex db eb IIC T6/T5/T4 Gb · II 2 G D Ex tb IIIC T80°C Db
• IECEx: Ex db eb IIC T6/T5/T4 Gb · Ex tb IIIC T80°C Db
• Ambient: -45°C … +60°C
• IP: IP66

Code HSP1P 16 AC50 2P W-SCT means: Wall socket · 16 A · 36–50 V AC · 2P · PE n/a.
