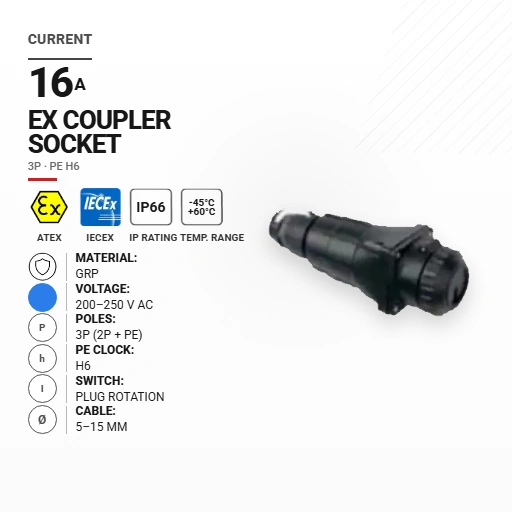

Coupler socket 16 A | 200–250 V AC | 3P | PE h6

Description

HARDO HSP1P explosion-proof coupler socket for Ex zones 1, 2, 21 and 22. GRP housing, IP66. Mechanical interlock prevents withdrawal under load.

• Rated current: 16 A
• Rated voltage: 200–250 V AC (Blue)
• Poles: 3P (2P + PE)
• PE pin position: h6
• Switch: Plug rotation
• Cable: 5–15 MM
• Auxiliary contact NO: None
• ATEX: II 2 G D Ex db eb IIC T6/T5/T4 Gb · II 2 G D Ex tb IIIC T80°C Db
• IECEx: Ex db eb IIC T6/T5/T4 Gb · Ex tb IIIC T80°C Db
• Ambient: -45°C … +60°C
• IP: IP66

Code HSP1P 16 AC250 3P C-SCT means: Coupler socket · 16 A · 200–250 V AC · 3P · PE h6.
