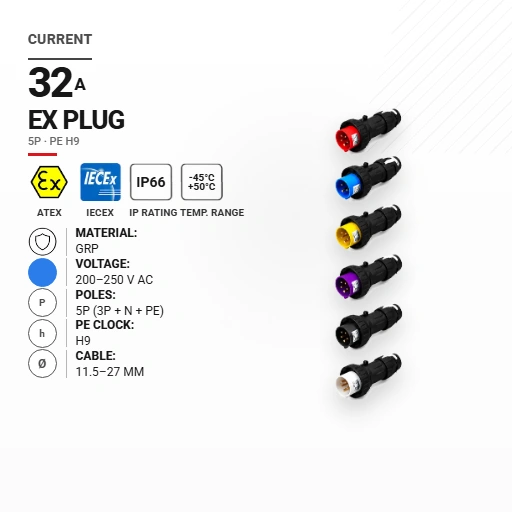

Plug 32 A | 200–250 V AC | 5P | PE h9

Description

HARDO HSP1P explosion-proof plug for Ex zones 1, 2, 21 and 22. GRP housing, IP66. Mechanical interlock prevents withdrawal under load.

• Rated current: 32 A
• Rated voltage: 200–250 V AC (Blue)
• Poles: 5P (3P + N + PE)
• PE pin position: h9
• Switch: n/a
• Cable: 11.5–27 MM
• Auxiliary contact NO: None
• ATEX: II 2 G D Ex db eb IIC T6/T5/T4 Gb · II 2 G D Ex tb IIIC T80°C Db
• IECEx: Ex db eb IIC T6/T5/T4 Gb · Ex tb IIIC T80°C Db
• Ambient: -45°C … +50°C
• IP: IP66

Code HSP1P 32 AC250 5P PLG means: Plug · 32 A · 200–250 V AC · 5P · PE h9.
