Plug 16 A | 380–415 V AC | 5P | PE h6

Description

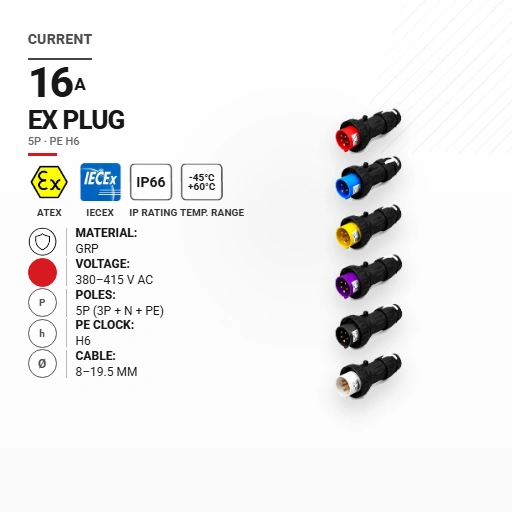

HARDO HSP1P explosion-proof plug for Ex zones 1, 2, 21 and 22. GRP housing, IP66. Mechanical interlock prevents withdrawal under load.

• Rated current: 16 A
• Rated voltage: 380–415 V AC (Red)
• Poles: 5P (3P + N + PE)
• PE pin position: h6
• Switch: n/a
• Cable: 8–19.5 MM
• Auxiliary contact NO: None
• ATEX: II 2 G D Ex db eb IIC T6/T5/T4 Gb · II 2 G D Ex tb IIIC T80°C Db
• IECEx: Ex db eb IIC T6/T5/T4 Gb · Ex tb IIIC T80°C Db
• Ambient: -45°C … +60°C
• IP: IP66

Code HSP1P 16 AC415 5P PLG means: Plug · 16 A · 380–415 V AC · 5P · PE h6.
