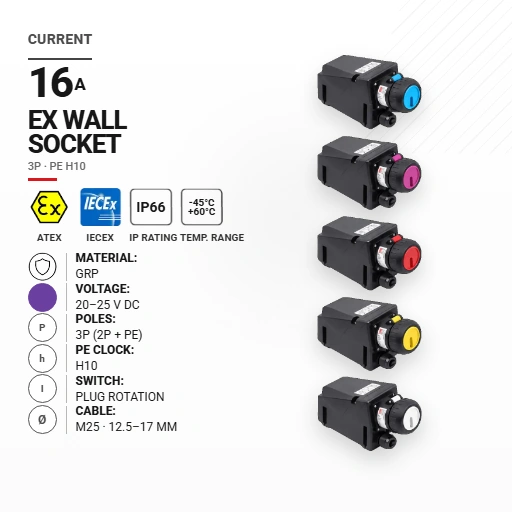

Wall socket 16 A | 20–25 V DC | 3P | PE h10

Description

HARDO HSP1P explosion-proof wall socket for Ex zones 1, 2, 21 and 22. GRP housing, IP66. Mechanical interlock prevents withdrawal under load.

• Rated current: 16 A
• Rated voltage: 20–25 V DC (Violet)
• Poles: 3P (2P + PE)
• PE pin position: h10
• Switch: Plug rotation
• Cable: M25 · 12.5–17 MM
• Auxiliary contact NO: None
• ATEX: II 2 G D Ex db eb IIC T6/T5/T4 Gb · II 2 G D Ex tb IIIC T80°C Db
• IECEx: Ex db eb IIC T6/T5/T4 Gb · Ex tb IIIC T80°C Db
• Ambient: -45°C … +60°C
• IP: IP66

Code HSP1P 16 DC25 3P W-SCT means: Wall socket · 16 A · 20–25 V DC · 3P · PE h10.
