Description

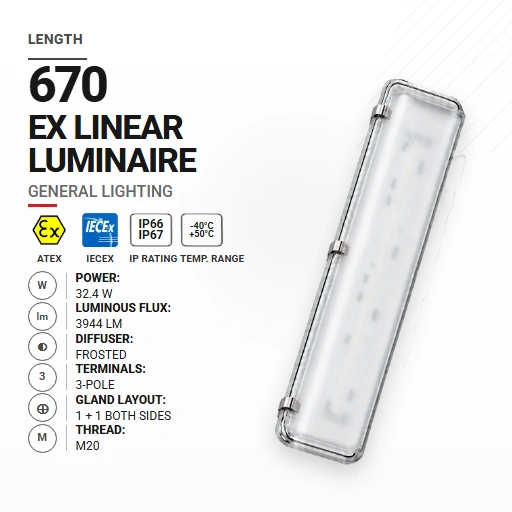

PrimeLine ATEX Zone 1 light fittings. Linear Ex LED luminaire for general lighting. Certification also covers Zones 2, 21 and 22. GRP body, PC diffuser, IP66/IP67. This SKU does not include emergency variants.
- Ordering code: PL 60-3 320SOM
- Dimensions L×D×H: 670x173x107
- Power: 32.4 W
- Luminous flux AC: 3944 lm
- Colour temperature: 4000 K
- CRI: >80
- IP: IP66 / IP67
- IK: IK09
- Housing: GRP
- Diffuser: Frosted (PC)
- Cable glands: M20 — 1 gland on each side
- Terminals: 3-pole
- Through wiring: 2.5 mm² / 105°C insulation
- Isolating switch: no
- Ambient temperature: -40°C…+50°C
- ATEX / IECEx: Ex II 2G Ex eb mb IIC T4 Gb – Ex II 2D Ex tb IIIC T70°C Db
- Zone: 1
Code PL 60-3 320SOM means: 670 mm, ~14 W LED module, 3-pole terminal, M20 (1 gland on each side), general lighting, no isolating switch, frosted diffuser.
