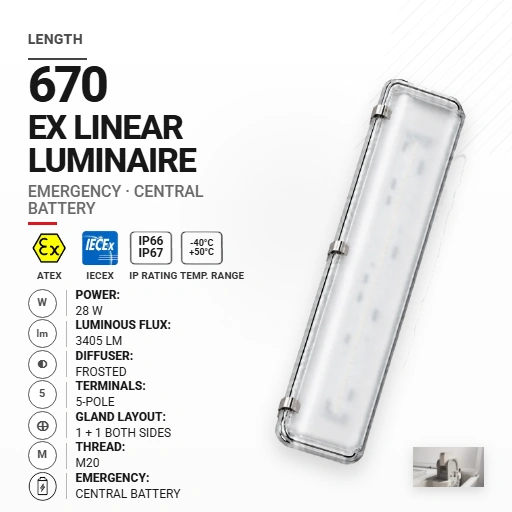

PrimeLine 670 mm 28 W | Frosted | M20 | Emergency CB

Description

PrimeLine ATEX emergency luminaire for central battery systems. Backup power comes from a compatible central system, not from a battery inside the luminaire. Certification covers Zones 1, 2, 21 and 22. GRP body, PC diffuser, IP66/IP67. Version B: central battery without addressing. Confirm system compatibility before ordering.

• Ordering code: PL 60-2 520BRM
• Dimensions L×D×H: 670x173x107
• Power: 28 W
• Luminous flux AC: 3405 lm
• Luminous flux DC (emergency): 3405 lm
• Colour temperature: 4000 K
• CRI: >80
• IP: IP66 / IP67
• IK: IK09
• Housing: GRP
• Diffuser: Frosted (PC)
• Cable glands: M20 — 1 gland on each side
• Terminals: 5-pole
• Through wiring: 2.5 mm² / 105°C insulation
• Isolating switch: yes
• Ambient temperature: -40°C…+50°C
• ATEX / IECEx: Ex II 2G Ex db eb mb IIC T4 Gb – Ex II 2D Ex tb IIIC T70°C Db
• Zone: 1

Code PL 60-2 520BRM means: 670 mm, ~12 W LED module, 5-pole terminal, M20 (1 gland on each side), central battery, no addressing, with isolating switch, frosted diffuser.
