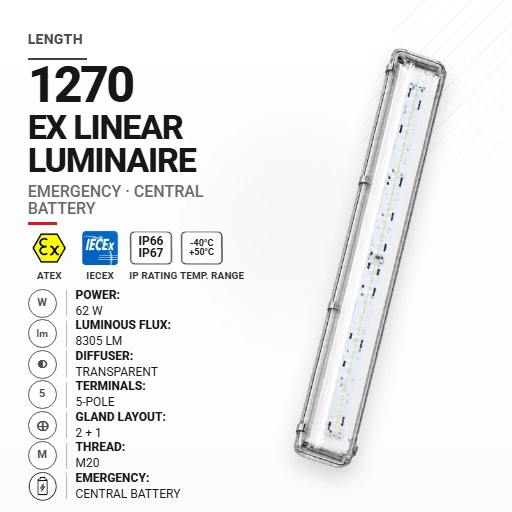

PrimeLine 1270 mm 62 W | Transparent | M20 | Emergency CB

Description

PrimeLine ATEX emergency luminaire for central battery systems. Backup power comes from a compatible central system, not from a battery inside the luminaire. Certification covers Zones 1, 2, 21 and 22. GRP body, PC diffuser, IP66/IP67. Version B: central battery without addressing. Confirm system compatibility before ordering.

• Ordering code: PL 12-3 530BOT
• Dimensions L×D×H: 1270x173x107
• Power: 62 W
• Luminous flux AC: 8305 lm
• Luminous flux DC (emergency): 8305 lm
• Colour temperature: 4000 K
• CRI: >80
• IP: IP66 / IP67
• IK: IK09
• Housing: GRP
• Diffuser: Transparent (PC)
• Cable glands: M20 — 2 glands on one side and 1 on the other
• Terminals: 5-pole
• Through wiring: 2.5 mm² / 105°C insulation
• Isolating switch: no
• Ambient temperature: -40°C…+50°C
• ATEX / IECEx: Ex II 2G Ex eb mb IIC T4 Gb – Ex II 2D Ex tb IIIC T70°C Db
• Zone: 1

Code PL 12-3 530BOT means: 1270 mm, ~14 W LED module, 5-pole terminal, M20 (2 glands on one side and 1 on the other), central battery, no addressing, no isolating switch, transparent diffuser.
