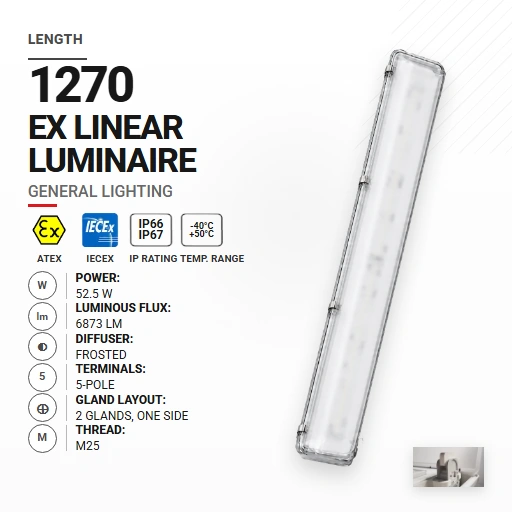

PrimeLine 1270 mm 52.5 W | Frosted | M25 | General

Description

PrimeLine ATEX Zone 1 light fittings. Linear Ex LED luminaire for general lighting. Certification also covers Zones 2, 21 and 22. GRP body, PC diffuser, IP66/IP67. This SKU does not include emergency variants.

• Ordering code: PL 12-2 555SRM
• Dimensions L×D×H: 1270x173x107
• Power: 52.5 W
• Luminous flux AC: 6873 lm
• Colour temperature: 4000 K
• CRI: >80
• IP: IP66 / IP67
• IK: IK09
• Housing: GRP
• Diffuser: Frosted (PC)
• Cable glands: M25 — 2 glands, one side only
• Terminals: 5-pole
• Through wiring: Not applicable
• Isolating switch: yes
• Ambient temperature: -40°C…+50°C
• ATEX / IECEx: Ex II 2G Ex db eb mb IIC T4 Gb – Ex II 2D Ex tb IIIC T70°C Db
• Zone: 1

Code PL 12-2 555SRM means: 1270 mm, ~12 W LED module, 5-pole terminal, M25 (2 glands, one side only), general lighting, with isolating switch, frosted diffuser.
