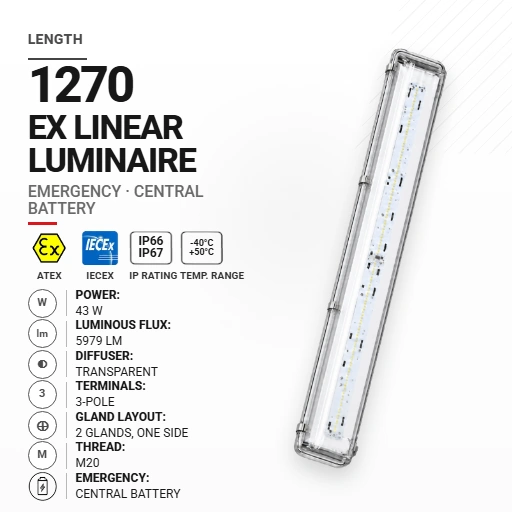

PrimeLine 1270 mm 43 W | Transparent | M20 | Emergency CB

Description

PrimeLine Emergency for a central battery, Zone 1. No battery inside the luminaire — emergency power and tests come from the CEAG / Eaton central system. CEAG systems only. Shared mains/emergency feed, up to 20 luminaires per circuit. Isolating switch is available. Version B: central battery without addressing.

• Ordering code: PL 12-1 350BOT
• Dimensions L×D×H: 1270x173x107
• Power: 43 W
• Luminous flux AC: 5979 lm
• Luminous flux DC (emergency): 5979 lm
• Colour temperature: 4000 K
• CRI: >80
• IP: IP66 / IP67
• IK: IK09
• Housing: GRP
• Diffuser: Transparent (PC)
• Cable glands: M20 — 2 glands, one side only
• Terminals: 3-pole
• Through wiring: Not applicable
• Isolating switch: no
• Ambient temperature: -40°C…+50°C
• ATEX / IECEx: Ex II 2G Ex eb mb IIC T4 Gb – Ex II 2D Ex tb IIIC T70°C Db
• Zone: 1

Code PL 12-1 350BOT means: 1270 mm, ~10 W LED module, 3-pole terminal, M20 (2 glands, one side only), central battery, no addressing, no isolating switch, transparent diffuser.
