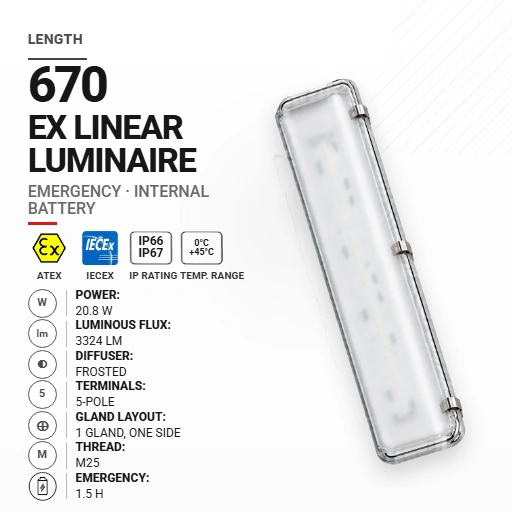

OptiLine 670 mm 20.8 W | Frosted | M25 | Emergency 1.5 h

Description

OptiLine self-contained emergency, Zone 2 (A1, 1.5 h). Battery inside the luminaire. AC 230 V only, ambient 0 to +45 °C. GRP body, PC diffuser, IP66/IP67. This SKU is the A1 variant only.

• Ordering code: OL 60-1 50 10 25 A1 KM
• Dimensions L×D×H: 670x173x107
• Power: 20.8 W
• Luminous flux AC: 3324 lm
• Luminous flux DC (emergency): 750 lm
• Colour temperature: 4000 K
• CRI: >80
• IP: IP66 / IP67
• IK: IK09
• Housing: GRP
• Diffuser: Frosted (PC)
• Cable glands: M25 — 1 gland, one side
• Terminals: 5-pole
• Through wiring: ND
• Isolating switch: no
• Ambient temperature: 0°C to +45°C
• ATEX / IECEx: Ex ec IIC T4 Gc, Ex tb IIIC T70°C Db
• Zone: 2

Code OL 60-1 50 10 25 A1 KM means: 670 mm, ~18 W LED module, 5-pole terminal, M25 (1 gland, one side), internal NiCd battery, 1.5 h (A1), no isolating switch, frosted diffuser.

Product features

• Even 4 cable glands M20 or M25 for ease of installation
• Excellent quality-to-price ratio
• Pass-through wiring reducing extra junction boxes
• 3 diffusers providing varied light beams
• Diffuser and internal mounting plate on hinges (no loose parts)
• Lenses directing the light beam (optional)
• Can be used as general lighting (optional)
