Description

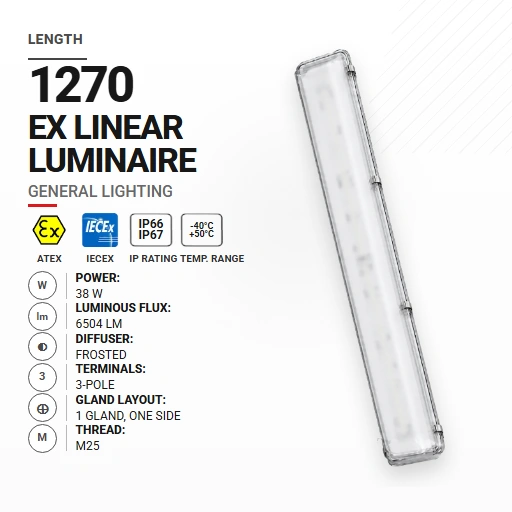

OptiLine Zone 2 / 21 / 22 light fittings. Linear Ex LED luminaire for general lighting. The same version can work with an unmonitored central battery. GRP body, PC diffuser, IP66/IP67. This SKU is not A1 or CBX/CBY.
- Ordering code: OL 12-1 30 10 25 KM
- Dimensions L×D×H: 1270x173x107
- Power: 38 W
- Luminous flux AC: 6504 lm
- Luminous flux DC (emergency): 3100 lm
- Colour temperature: 4000 K
- CRI: >80
- IP: IP66 / IP67
- IK: IK09
- Housing: GRP
- Diffuser: Frosted (PC)
- Cable glands: M25 — 1 gland, one side
- Terminals: 3-pole
- Through wiring: ND
- Isolating switch: no
- Ambient temperature: -40°C to +50°C
- ATEX / IECEx: Ex ec IIC T4 Gc, Ex tb IIIC T70°C Db
- Zone: 2
Code OL 12-1 30 10 25 KM means: 1270 mm, ~18 W LED module, 3-pole terminal, M25 (1 gland, one side), general lighting, also unmonitored central battery, no isolating switch, frosted diffuser.
Product features
- Excellent quality-to-price ratio
- Up to 4 cable glands M20 or M25 for ease of installation
- Pass-through wiring reducing extra junction boxes
- Can be used as emergency lighting (optional)
- Diffuser and internal mounting plate on hinges (no loose parts)
- 3 diffusers providing varied light beams
- Very high efficiency (from 141 to 181 lm/W)
- Lenses directing the light beam (optional)
