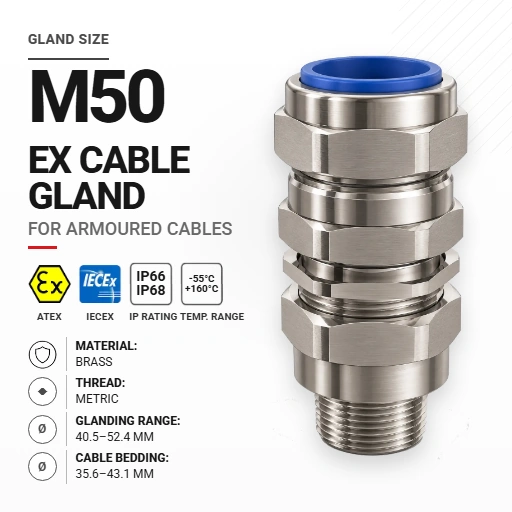

Cable gland M50 Brass | Armoured | Metric

Description

CABLE GLAND FOR ARMOURED CABLES, BRASS , METRIC M50, SIZE 50, Marking according to 2014/34/EU (ATEX): II 2 GD Ex db IIC Gb, II 2 GD Ex eb IIC Gb, II 2 GD tb IIIC Db Ambient temperature: -55°C do +160°C IP rating according to EN 60529: IP66/IP68 Overall cable diameter: from 40,5mm to 52,4mm Cable bedding diameter: from 35,6mm to 43,1mm

• ATEX / IECEx: II 2 GD Ex db IIC Gb, II 2 GD Ex eb IIC Gb, II 2 GD tb IIIC Db
• Ambient temperature: -55°C do +160°C
• IP rating: IP66/IP68
• Overall cable diameter: 40.5–52.4 mm
• Cable diameter under sheet: 35.6–43.1 mm
