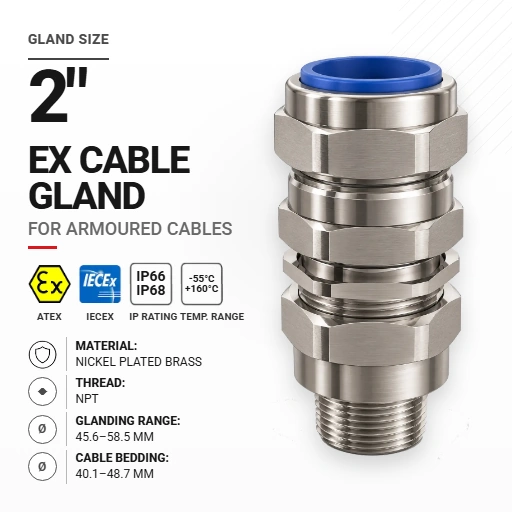

Cable gland 2″ 63S Nickel plated brass | Armoured | NPT

Description

CABLE GLAND FOR ARMOURED CABLES, NICKEL PLATED BRASS, NPT 2", SIZE 63S, Marking according to 2014/34/EU (ATEX): II 2 GD Ex db IIC Gb, II 2 GD Ex eb IIC Gb, II 2 GD tb IIIC Db Ambient temperature: -55°C do +160°C IP rating according to EN 60529: IP66/IP68 Overall cable diameter: from 45,6mm to 58,5mm Cable bedding diameter: from 40,1mm to 48,7mm

• ATEX / IECEx: II 2 GD Ex db IIC Gb, II 2 GD Ex eb IIC Gb, II 2 GD tb IIIC Db
• Ambient temperature: -55°C do +160°C
• IP rating: IP66/IP68
• Overall cable diameter: 45.6–58.5 mm
• Cable diameter under sheet: 40.1–48.7 mm
