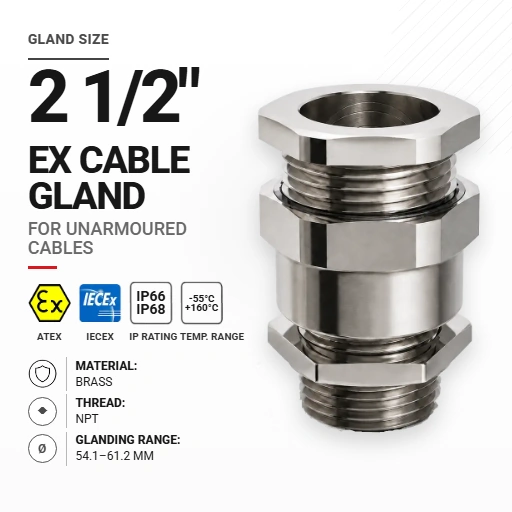

Cable gland 2 1/2″ 75S Brass | Non-armoured | NPT

Name: Cable gland 2 1/2" 75S Brass | Non-armoured | NPT
SKU: HCG1B7N75S
Price: 37.18 EUR
Availability: InStock

37,18 €

II 2 GD Ex db IIC Gb, II 2 GD Ex eb IIC Gb, II 2 GD tb IIIC Db

SKU: HCG1B7N75S

Category: Cable Glands, Non-armoured

Description

CABLE GLAND FOR NON-ARMOURED CABLES, BRASS , NPT 2 1/2", SIZE 75S, Marking according to 2014/34/EU (ATEX): II 2 GD Ex db IIC Gb, II 2 GD Ex eb IIC Gb, II 2 GD tb IIIC Db Ambient temperature: -55°C do +160°C IP rating according to EN 60529: IP66/IP68 Overall cable diameter: from 54,1mm to 61,2mm

ATEX / IECEx: II 2 GD Ex db IIC Gb, II 2 GD Ex eb IIC Gb, II 2 GD tb IIIC Db
Ambient temperature: -55°C do +160°C
IP rating: IP66/IP68
Overall cable diameter: 54.1–61.2 mm
