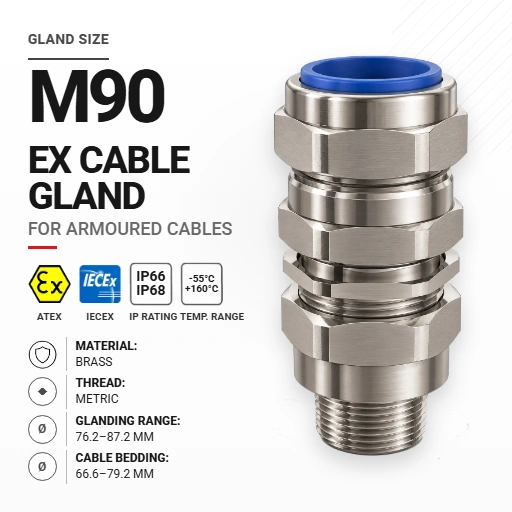

Cable gland M90 Brass | Armoured | Metric

Description

CABLE GLAND FOR ARMOURED CABLES, BRASS , METRIC M90, SIZE 90, Marking according to 2014/34/EU (ATEX): II 2 GD Ex db IIC Gb, II 2 GD Ex eb IIC Gb, II 2 GD tb IIIC Db Ambient temperature: -55°C do +160°C IP rating according to EN 60529: IP66/IP68 Overall cable diameter: from 76,2mm to 87,2mm Cable bedding diameter: from 66,6mm to 79,2mm

• ATEX / IECEx: II 2 GD Ex db IIC Gb, II 2 GD Ex eb IIC Gb, II 2 GD tb IIIC Db
• Ambient temperature: -55°C do +160°C
• IP rating: IP66/IP68
• Overall cable diameter: 76.2–87.2 mm
• Cable diameter under sheet: 66.6–79.2 mm
