Room dust sensor
5 632,00 €
The sensor measures dust continuously in production rooms, including in explosion-risk areas (ATEX certified).
Detailed technical specification
| Parameter | Specification |
|---|---|
| Measurement | Total suspended particles |
| Measurement principle | Induction electrification |
| Range | Detection limit from 0.01 mg/m³ to several g/m³ (depending on dust type) |
| Serial communication | RS485, USB, and optionally wireless communication |
| Communication protocols | Modbus RTU (RS-485), Sintrol network (USB, RF, RS-485) |
| Output signals | Two independent solid state relays, with adjustable output signal values for warning and alarm. |
| Power supply | 12 – 24VDC ± 10% |
| Protection class | IP 66 |
| Ambient temperature | from -40°C to +60°C |
| Humidity | Max. 95% relative humidity (non-condensing) |
| Power consumption | Up to 10W |
| Software | DustTool Software allows management of multiple sensors and study of dust trends |
| Weight | 4.2 kg |

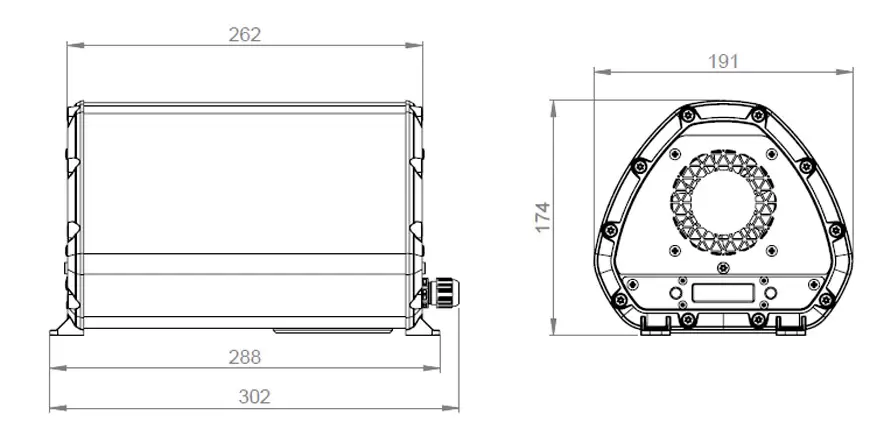

| Dimensions (L x W x H) | 288 x 191 x 174 mm |
Description
Continuous real-time dust concentration measurement.
Ensure safety and health at your workplace!
Introducing a dust sensor that continuously measures dust concentrations in production halls and other industrial premises, also in explosion hazardous areas (ATEX certified).
Technical specifications
-
Measurement principle:
Induction electrification -
Measuring range:
From 0.01 mg/m³ to several g/m³ -
Degree of protection:
IP 66 -
Operating temperature:
-40°C to +60°C
Main product benefits:
- Continuous real-time measurement and instant notifications.
- Built-in, easy-to-use control panel.
- Free software for data management and analysis.
- Autostart function (ready to go in 8 minutes).
- Flexibility: stand-alone operation or integration into systems.
Application:
Employee health protection
Monitoring of the working environment and protection against occupational diseases.
Abnormality detection
Rapid identification of problems in dust extraction and ventilation systems.
Explosion risk reduction
A key element in explosion prevention systems.
